Solving conductivity issues in textile products with fine metallic wires

Synthetic Filaments Synthetic
fibers
Spun
yarns + fabrics
Hi-tech performance
Metallic
fibers
Metallic
filament yarn
Fine metallic wire

There are occasions where the quality of your newly created product could get a real boost and advantage over your competitors if this product had the capability to lead away electrostatic charges or to shield from electro magnetic fields. This ability would solve a lot of static charges problems and does allow you to design innovative new solutions to the ever changing market demands.

 Fine metallic wire

Whatever your production process, your equipment, the strains they represent, we are able to offer you the adapted solution to implement its antistatic and shielding function.

Our supplier partner produces the most complete range of fine metallic wires (monofilament) for textile applications. .



Technical applications

Our textile wire can be used directly in weaving, knitting, braiding doubling and spinning as well as already processed in yarns. The possible variations of fabrics by combining colours, diameters and metals with traditional textile materials allow you fantastic and innovative applications.

In today's world people are increasingly concerned about the effects of electro-smog. Fabrics containing our textile wires offer an excellent protection against electromagnetic radiation. With these fine wires high tech solutions in the product design and product performance can be achieved.

fine metal wire for textile conductivity and shielding solutions




Fashion applications

Fashionable! Our fine wires offer brilliant perspectives to fashion designers. If you are looking for new, surprising fabric variations our textile wires offer unlimited creativity in the world of fashion such as fabric creations with metal or creasing effects. We look forward to supporting you with our experience for your innovations. The strength of our fine metal wires is that our manufacturing partner is the world leader in coated fine wires as well as in colored fine wires.

EFFECTS

  • Color

  • Sheen

  • Creasing effect

  • Metal effect

  • Rigidity

fashionable clothing with special effects resulting from the use of finest metallic wires (metal monofilament)


Metals

Various material properties can be used to produce certain effects: strength, elongation, hardness and density influence the rebound and creasing effects, rigidity, suppleness and weight of the textile fibres or the fabric.

Typical mechanical values of copper (Cu), brass (Ms), silver plated copper (CuAg), silver plated brass (MsAg), aluminum (Al) and copper clad aluminum (CCA) are shown here below:

Metal
Density
[kg/dm3]

Breaking strength
[N/mm2] approx.
from          to

Elongation
[%]
from      to
Cu and CuAg 8.9 260          320  10        35
Ms and MsAg 8.5 410          590  10        30
Al 2.7 120          180   5        25
CCA 3.3 180          220   5        15

Feindraht für modische und technische textile Applikationenfine metal (copper, brass, aluminum) wire for shielding and conductivity solutionsfine copper, brass and aluminum wire for shielding and conductivity solutions




Colors

All possible colours can be offered by specifying the RAL colour chart number or by supplying us your color samples.

Our supplier partner has measurement equipment that allows colour values to be saved in digital form. The reproducibility of our specific colors is therefore guaranteed at all times.

The color of the base metal can be retained with a transparent coating.

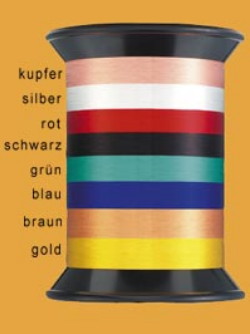

colored and coated fine metal wires for shielding and conductivity solutions




Supply spools

Spool type d1
[mm]
d4
[mm]
l1
[mm]
Approx. nom. filling weight [kg] Wire diameter range [mm]
79/45
80
16
100
0.7
0.020 - 0.030
124/45R
125
16
125
2.5
0.025 - 0.063
159/45R
160
22
160
6.0
0.040 - 0.080
199/45R
200
22
200
11.0
0.050 - 0.080

 drawing of bobbins of fine metal wire




Available diameters/fineness

Nominal diameter of the metal [mm] Outside diameter
[mm] 1)
Nm
[m/g]
dtex
[g/10'000m]
approx. 2)
0.020 0.021 - 0.030 323 31
0.025 0.026 - 0.038 205 49
0.027 0.028 - 0.041 178 56
0.030 0.031 - 0.046 143 70
0.036 0.038 - 0.054 100 100
0.040 0.042 - 0.059 81 123
0.050 0.053 - 0.072 52 192
0.063 0.066 - 0.089 33 303
0.071 0.075 - 0.097 26 385
0.080 0.084 - 0.109 21 476
1) May differ depending on colour and colour intensity.
2) Depending on outside diameter




Type of wires

  TW-O TW-A TW-B TW-C TW-D
Characteristics Bare wire
without protective coating
Wire with limited mechanical and chemical resistance, wide range of colour variations Wire with limited mechanical and chemical resistance, wide range of colour variations Wire with high mechanical and chemical resistance, wide range of colour variations Wire with very high mechanical and chemical resistance
Colors Metal colors Standard colors, special colors on request Standard colors, special colors on request Standard colors, special colors on request Standard colors, some additional colors on request

Main applications                          in





                        for


Weaving/warp
knitting,
embroidery,
twisting,
spinning, knitting

decoration fabrics, technical textiles "TECHTEX"

Weaving/warp
knitting,
embroidery,
twisting, spinning, knitting

decoration fabrics
Weaving/warp knitting, embroidery, twisting, spinning, knitting

decoration fabrics
Weaving/warp
knitting, embroidery, twisting, spinning, knitting

fashion, technical textiles "TECHTEX" with high value, decoration fabrics
Weaving/warp knitting, embroidery, twisting, spinning, knitting

fashion, technical textiles "TECHTEX" with high value, decoration fabrics
