Textile Copper Fine Wire applications



Textile Wire is an innovation in the field ultra thin wire.

Home

Applications Program

Applications

Fabric against electro-smog

Fabric against electro-smog

Fabrics containing our textile wires offer excellent protection against electromagnetic radiation. In the frequency range of mobile communication, for example, protection values of approx. 40 dB (99%) can be achieved.

In today's world people are increasingly concerned about electro-smog. Fabrics containing our textile wires offer excellent protection against electromagnetic radiation. In the frequency range of mobile communication, for example, protection values of approx. 40 dB (99%) can be achieved.

There is a wide range of applications, as for example:

Lining fabrics

  • For pockets and jackets (for patients with pacemakers)

Underwear

  • All variations are conceivable

Men and women's clothing

  • Shirts and blouses
  • Jackets
  • Protective clothing

Tenting / Awning

  • Protection of measuring instruments and sensitive field instruments
  • Awning for house roofs and house facades

Curtain material

  • For apartments and offices near aerials for mobile communication
  • For hospitals, protection of sensitive medical devices
  • For high-security buildings to increase protection against eavesdropping

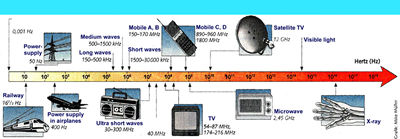

graphic of wave lengths by Elektrisola

fabric for data transfer

Fabric for data transfer

The ribbon in the "Infineon Anorak" consists of PES and silver-plated copper makes possible to transfer data with electric signals.

Ribbon for data transfer
from PES and silver-plated copper wire TW-D
Ribbon for data transfer containing finest wires from Elektro Feindraht



Ribbon for data transfer

ribbon for data transfer containing finest wires from Elektro Feindraht

Infineon Anorak
with integrated ribbon for data transfer
Infineon Anorak containing finest wires from Elektro Feindraht

Data transfer with narrow ribbon

The narrow ribbons shown on the left allow data transfer with electric signals.

The material of the ribbon consists of PES-texturized dtex 167 f 30 x 2 and additional blended yarns PES-texturized, dtex 167 f 30 with insulated conductive silver-plated copper monofilaments 0,040 mm, dtex 123.

With such ribbon systems specially manufactured jackets, garments and overcoats can be produced. For example, with the above "Infineon Anorak" music with an MP3-player can be played.

Possible future application include, for example, anoraks for mountain climbers that check pulse and heart. Furthermore, in case of an emergency, the nearest first aid station would be active and the location of the victim would be transmitted by GPS



Fabric for ESD applications

Fabric for ESD applications

The use of conductive piece goods during the assembly of electronic components (e.g. automobile industry) protects them from electrical discharge.

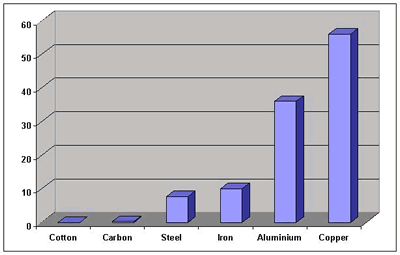

Specific conductivity [S*m/mm2]

Fabric for ESD applications



Measured ESD values
  Charging Surface resistance
Curtain material 0 - 20 V 1 GΩ
Single Jersey 0 -100 V < 1 kΩ
ESD fabric 100-200 V
quick discharge
85 GΩ
Fabric without wire 2 - 5 kV
no discharge
> 1TΩ
Single Jersey
single jersey for ESD applications containing finest wires from Elektro Feindraht
dtex 100 Twist 600 Trs / m
Blended yarn:   PES textured dtex 50f24 and silver-plated copper, 0,027 mm, TW-0 (dtex 58)
Blend: 46% PES / 54% metal
Curtain material
curtain material for ESD applications containing finest wires from Elektro Feindraht
dtex 110 Twist 590 Trs / m
Blended yarn:   PES dtex 76f24 and silver-plated copper,
0,020 mm, TW-D (dtex 31) and
Yarn: PES dtex 76f24
Blend: 80% PES / 20% metal
ESD fabric
Fabric for ESD applications containing finest wires from Elektro Feindraht
dtex 570 Twist 200 Trs / m
Blended yarn:   PES dtex 167f34 and silver-plated copper,
0,071 mm, TW-0 (dtex 385) and
Yarn: PES dtex 167f34
Blend: 93% PES / 7% metal



Texile wires in fashion end-use and decoration

Texile wires in fashion end-use and decoration

Our fine wires offer brilliant perspectives to fashion designers. If you are looking for new, surprising fabric variations our textile wires offer unlimited creativity in the world of fashion, such as fabric creations with metal or creasing effects.

Our fine wires offer brilliant perspectives to fashion designers. If you are looking for new, surprising fabric variations, our textile wires offer unlimited creativity in the world of fashion, such as fabric creations with metal or creasing effects. We look forward to supporting you with our experience for your innovations.

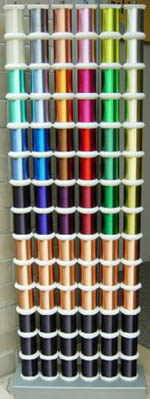

Silver-plated copper wires, coloured finest wires from Elektro Feindraht

Silver-plated copper wires, coloured

Individual colour requests can be met according to patterns or information from the RAL or Pantone colour chart.

Measuring instruments to save colour values digitally are available. This guarantees the exact reproduction of customer-specified colours at any time.
With a colourless coating, the colour of the specific base metal can be maintained.

Textile wires are supplied on spools with a biconical or a straight flange.

The minimum order for each colour is 20 to 50 kg, depending on the wire diameter





Textile wires for yarn application

Textile wires for yarn application

Our textile wire can be used directly in weaving, knitting, braiding doubling and spinning as well as already processed in yarns.

Cotton / PES spun yarn
- Spun yarn twisted
- Twist filament yarn, flat (Monofil + Multifil) fine
- Twist filament flat yarn, coarse dtex
- Air-textured
- Twist filament textured
- Textured yarn twisted
- Twist filament flat, solution dyed
- Metal litz wire (twist)

Cotton / PES spun yarn

Textile wires for yarn application - cotton /polyester spun yarn

Microscope 300

Textile wires for yarn application - cotton /polyester spun yarn

Microscope 013

Textile wires for yarn application - cotton /polyester spun yarn - yarn 013

Yarn 013

Yarn data 013
Yarn: Core-Spun
Yarn count:   dtex 150 / Nm 68 / Ne 40
PES-staple fibre
silver-plated copper, TW-D,
0,020 mm, dtex 31
Blend: 80% PES / 20% metal
Data
Ref.-Nr.: -
nom.: 0,020 mm
Outside-: 0,024 mm
Metal: CuAg, Code 15
Type: TW-D, PES-plated
Yarn data 300 on request
